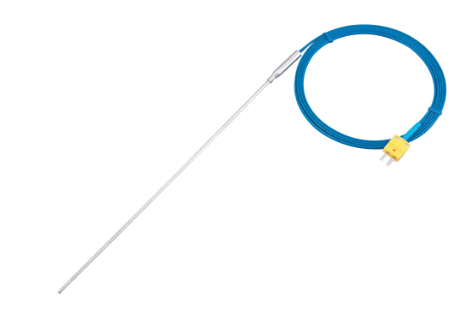

K熱電偶 奧米伽連接器型 產品詳細規格
規格：
材質：護套部／不銹鋼（SUS316）、 套管部／不銹鋼（SUS304）、 導線包覆／玻璃纖維
導線長度／2m
帶奧米伽連接器
【商品規格明細表】
| 圖片 | 編號 | 溫度范圍(℃) | 護套部直徑(mm) | 護套部長度(mm) | 銷售 包裝 | RMB(含稅) | 北京庫存 | 上海庫存 | 日本庫存 | 參考貨期 | 查詢NO. | 選購數量 |
 | 3-1561-01 | -50～＋650 | φ1.0 | 50 | 1個 | 333.00 | 0 | 0 | 21 | **12 | - | |
| 3-1561-02 | -50～＋650 | φ1.0 | 100 | 1個 | 333.00 | 0 | 0 | 31 | **12 | - | |
| 3-1561-03 | -50～＋650 | φ1.0 | 150 | 1個 | 370.00 | 0 | 0 | 9 | **12 | - | |
| 3-1561-04 | -50～＋650 | φ1.0 | 200 | 1個 | 370.00 | 0 | 0 | 26 | **12 | - | |
| 3-1561-05 | -50～＋650 | φ1.0 | 300 | 1個 | 425.00 | 0 | 0 | 30 | **12 | - | |
| 2-8107-01 | -50～＋650 | φ1.6 | 50 | 1個 | 292.00 | 0 | 0 | 46 | **12 | - | |
| 2-8107-02 | -50～＋650 | φ1.6 | 100 | 1個 | 292.00 | 0 | 0 | 79 | **12 | - | |
| 2-8107-03 | -50～＋650 | φ1.6 | 150 | 1個 | 369.00 | 0 | 0 | 72 | **12 | - | |
| 2-8107-04 | -50～＋650 | φ1.6 | 200 | 1個 | 369.00 | 0 | 0 | 61 | **12 | - | |
| 2-8107-05 | -50～＋650 | φ1.6 | 300 | 1個 | 408.00 | 0 | 0 | 145 | **12 | - | |
| 2-8107-06 | -50～＋750 | φ3.2 | 50 | 1個 | 369.00 | 0 | 0 | 24 | **12 | - | |
| 3-1672-01 | -50～＋700 | φ2.3 | 50 | 1個 | 333.00 | 0 | 0 | 6 | **12 | - | |
| 3-1672-02 | -50～＋700 | φ2.3 | 100 | 1個 | 333.00 | 0 | 0 | 4 | **12 | - | |
| 2-8107-07 | -50～＋750 | φ3.2 | 100 | 1個 | 369.00 | 0 | 0 | 31 | **12 | - | |
| 2-8107-08 | -50～＋750 | φ3.2 | 150 | 1個 | 415.00 | 0 | 0 | 4 | **12 | - | |
| 3-1672-03 | -50～＋700 | φ2.3 | 150 | 1個 | 370.00 | 0 | 0 | 30 | **12 | - | |
| 3-1672-04 | -50～＋700 | φ2.3 | 200 | 1個 | 370.00 | 0 | 0 | 23 | **12 | - | |
| 3-1672-05 | -50～＋700 | φ2.3 | 300 | 1個 | 425.00 | 0 | 0 | 12 | **12 | - | |
| 2-8107-10 | -50～＋750 | φ3.2 | 300 | 1個 | 415.00 | 0 | 0 | 55 | **12 | - | |
| 3-1673-01 | -50～＋800 | φ4.8 | 50 | 1個 | 351.00 | 0 | 0 | 0 | 80天左右 | **12 | - |
| 3-1673-02 | -50～＋800 | φ4.8 | 100 | 1個 | 351.00 | 0 | 0 | 7 | **12 | - | |
| 3-1673-03 | -50～＋800 | φ4.8 | 150 | 1個 | 389.00 | 0 | 0 | 7 | **12 | - | |
| 3-1673-04 | -50～＋800 | φ4.8 | 200 | 1個 | 389.00 | 0 | 0 | 8 | **12 | - | |
| 3-1673-05 | -50～＋800 | φ4.8 | 300 | 1個 | 444.00 | 0 | 0 | 12 | **12 | - | |
| 3-1674-01 | -50～＋900 | φ6.4 | 50 | 1個 | 代替品編號::停止銷售 | 0 | 0 | 0 | 另詢 | **22 | - |
| 3-1674-02 | -50～＋900 | φ6.4 | 100 | 1個 | 480.00 | 0 | 0 | 6 | **12 | - | |
| 3-1674-03 | -50～＋900 | φ6.4 | 150 | 1個 | 536.00 | 0 | 0 | 1 | **12 | - | |
| 3-1674-04 | -50～＋900 | φ6.4 | 200 | 1個 | 536.00 | 0 | 0 | 7 | **12 | - | |
| 3-1674-05 | -50～＋900 | φ6.4 | 300 | 1個 | 585.00 | 0 | 0 | 3 | **12 | - | |
| 3-1675-01 | -50～＋700 | φ8.0 | 50 | 1個 | 536.00 | 0 | 0 | 3 | **12 | - | |
| 3-1675-02 | -50～＋700 | φ8.0 | 100 | 1個 | 536.00 | 0 | 0 | 2 | **12 | - | |
| 3-1675-03 | -50～＋700 | φ8.0 | 150 | 1個 | 573.00 | 0 | 0 | 1 | **12 | - | |
| 3-1675-04 | -50～＋700 | φ8.0 | 200 | 1個 | 573.00 | 0 | 0 | 1 | **12 | - | |
| 3-1675-05 | -50～＋700 | φ8.0 | 300 | 1個 | 632.00 | 0 | 0 | 6 | **12 | - |
※日本在庫的情況下，從日本寄送大概需要18天左右
※請在護套底部溫度小于100℃的環境下使用。
